Flite Test M8 DC Battery Charger Workstation (8S/15A/300W)

Regular price $44.95

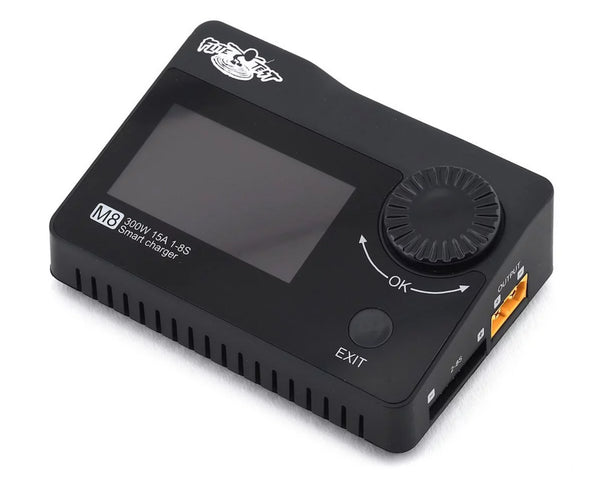

This is the Flite Test M8 DC Charger.

Features:

  • A versatile and powerful tool.
  • Developed from more than 6 years of industry experience.
  • Small in size, big on features:
    • An intelligent integration of technologies
    • Compact and efficient design
    • A host of integrated test tools
    • 300W@15A charging output power
    • 1-8S Lithium cell management
  • Everything you need in one device:
    • Servo Tester: Test Output, PWM, PPM 8CH and SBUS 18CH
    • Receiver: Signal tester for PWM, PPM and SBUS
    • Drone Charger: 1.0-30.0V, 1-15.0A
    • Output for: DJI Mavic2, Mavic, Phantom, Inspire
    • Charge: LiPo 1-8S, LiHV 1-8S, LiFe 1-8S, Nimh 1-20S, Pb 1-12S, MAX 15A@300W
    • Battery Meter: 7.0-30.0V, 15A@300W
    • Measure: 400mA @ 2-8S Voltage display
  • Upgrading has never been easier: The device uses a standard file systerm similar to a USB driver. Simply connect the device to your PC with the supplied cable and copy the files to update firmware.
  • Double the fans, double the cooling: Dual cooling fans provide better heat dispersion,lower speed and quieter operation.
  • Classic look, functional styling: Simple easy to read display for all lighting conditions.

Specifications:
  • Charger:
    • Input voltage: 7.0-30.0V  @MAX 16A
    • Type of battery: Lipo  LiHV  LiFe @1-8S, NiMh @1-20S, Pb @1-10S
    • Balance current: 400mA @2-8S
    • Charge power: 300W @MAX 15A
    • Discharge power: 300W  @MAX 15A Recycle mode, 12W@3A Normal mode
    • USB: 2.1A @5.0V  or  Upgrade
  • Measurer:
    • PWM: 880-2200us @20-400Hz
    • PPM: 880-2200us*8CH @20-50Hz
    • SBUS: 880-2200us*16CH @20-100Hz
    • Voltage: 1.0-5.0V @1-8S
    • Internal resistance: 10-500mR @1-8S
    • ESC: 300W @Max 15A
  • Output:
    • PWM: 880-2200us @20-400Hz
    • PPM: 880-2200us*8CH @20-50Hz
    • SBUS: 880-2200us*16CH @20-100Hz
    • Power: 1.0-30.0V  @1.0-15A  Mode:CC+CV
    • OverCurrent Cut Off time: 50ms
  • General:
    • Dimensions: 98x68x35mm
    • Weight: 142g
    • LCD: 2.2inch, 132x64 Pixel, black and white
